Machine park
More than 60 vertical and horizontal CNC machining centres, grinding, measuring and testing equipment – under one roof in Ptuj.
Milling · 3/4/5
Milling up to 4,500 × 800 mm
Small and large parts on 3-, 4- and 5-axis machining centres from Hedelius, Mazak, Mori Seiki, Kafo, Enshu, Toyoda, Chiron and Eumach – up to 20,000 min⁻¹ and 4,500 kg workpiece weight.
- 4,500 mm X travel
- 800 mm Y travel
- 20,000 min⁻¹
- 4,500 kg
Drawn to scale · X × Y, mm
Filter the machine park

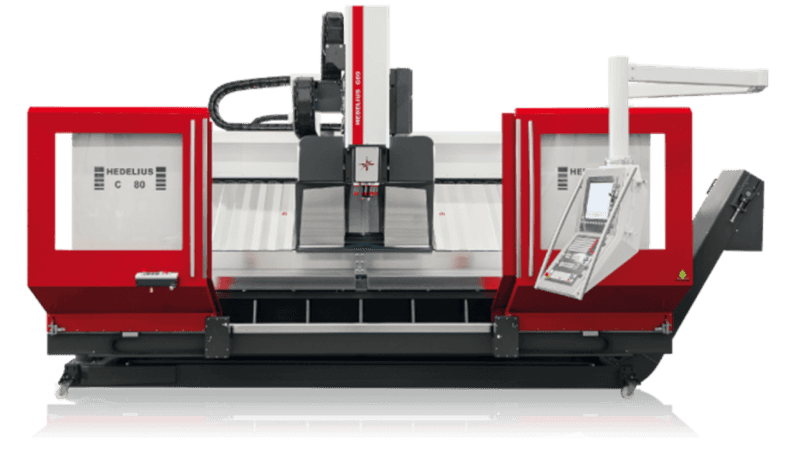

M-01Milling3-AX 3-axis milling machines

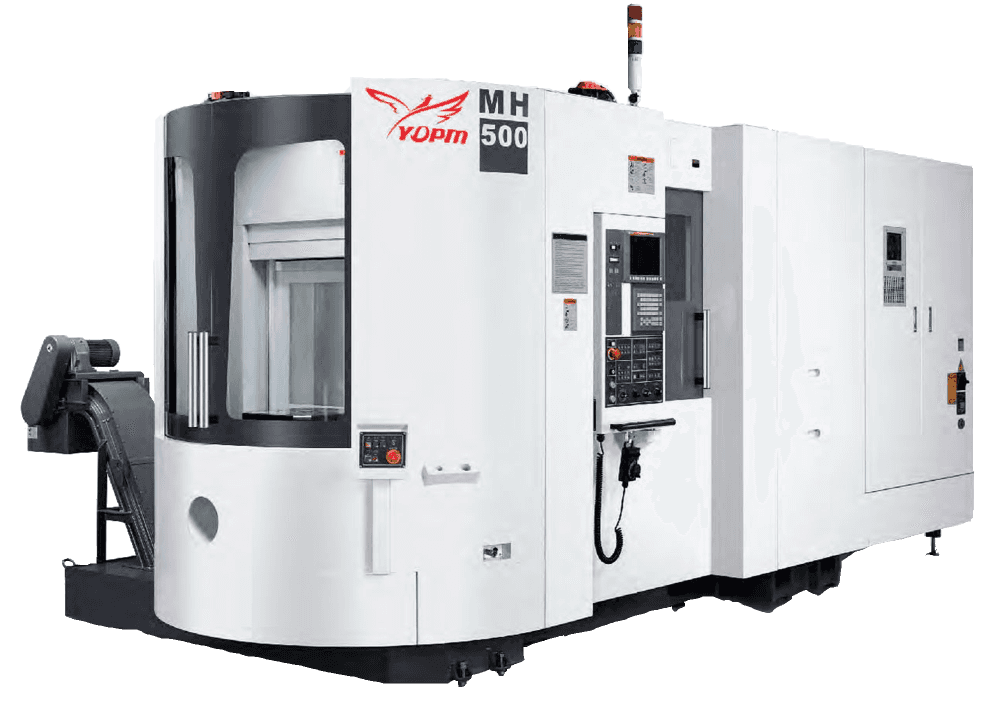

X travel 4,500 mm Y travel 800 mm Z travel 600 mm Spindle speed 20,000 min⁻¹ Workpiece weight 4,500 kg Z 600 mm M-02Milling3-AX 3-axis horizontal milling machines

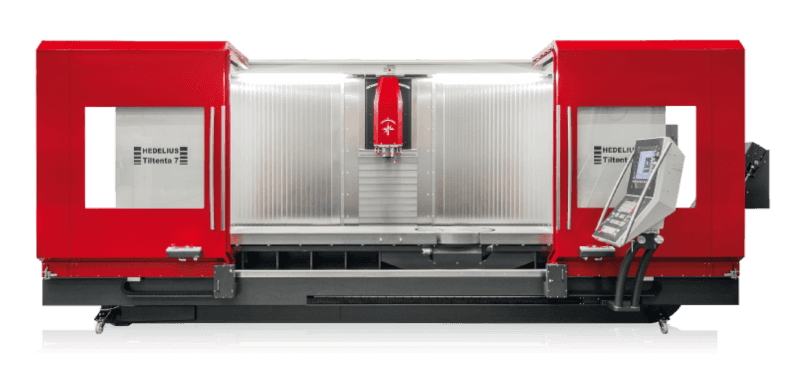

X travel 720 mm Y travel 650 mm Z travel 600 mm Spindle speed 10,000 min⁻¹ Workpiece weight 800 kg Z 600 mm M-03Milling4-AX 4-axis milling machines

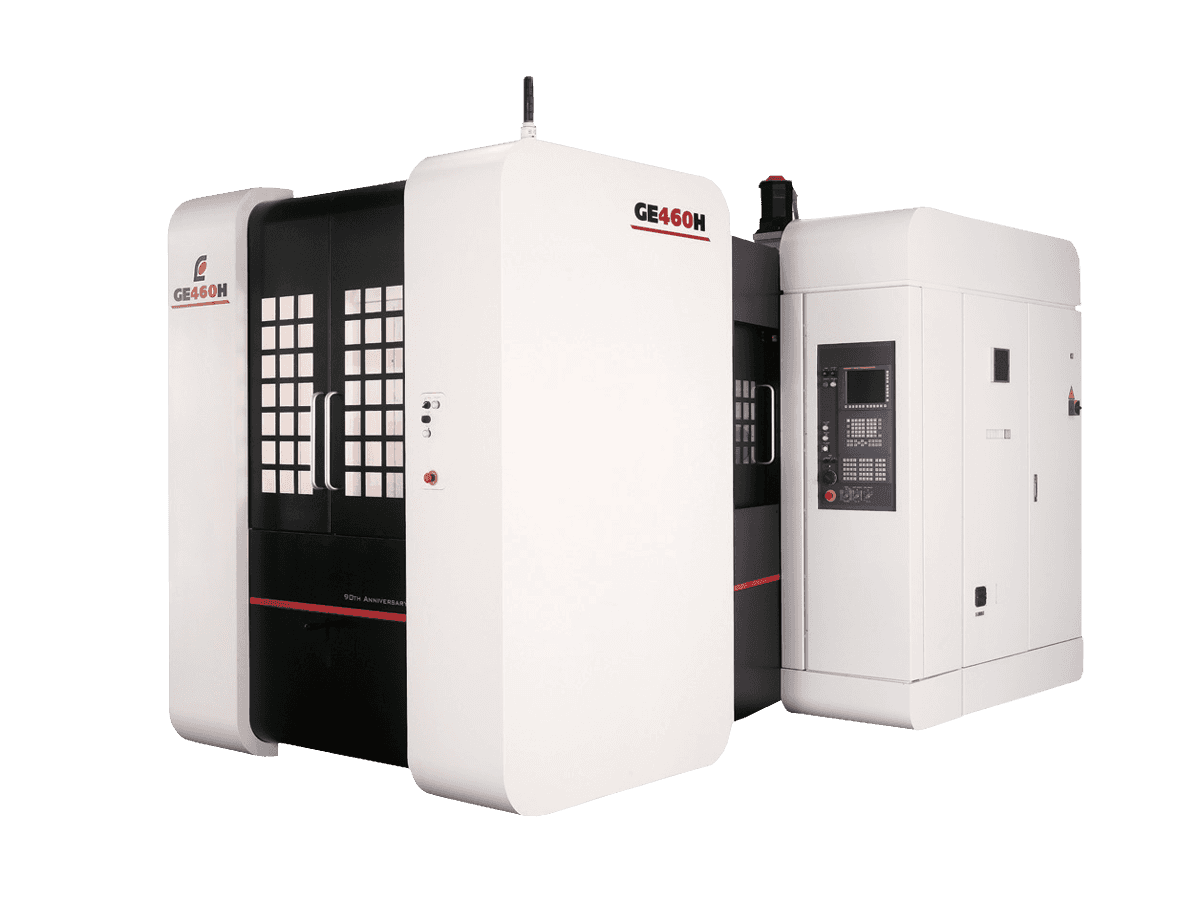

X travel 4,500 mm Y travel 800 mm Z travel 600 mm Spindle speed 18,000 min⁻¹ Workpiece weight 3,000 kg Z 600 mm M-04Milling4-AX 4-axis milling machine GE580H
Detailed specifications on request.

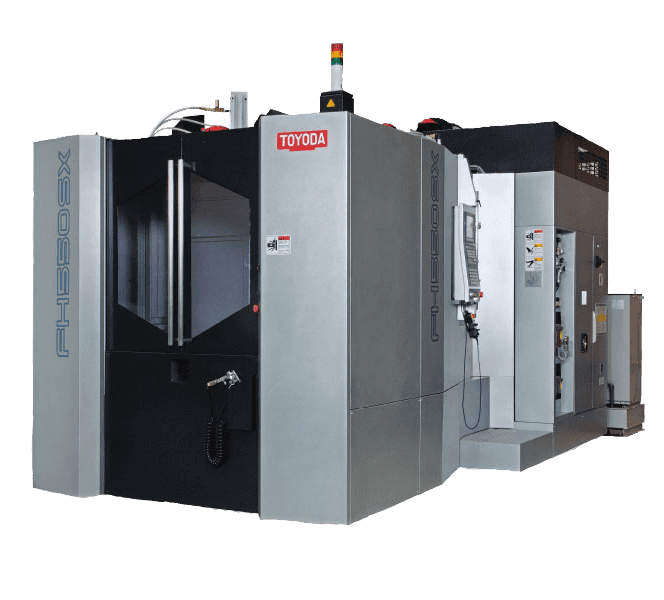

M-05Milling4-AX 4-axis milling machine Toyoda FH 550 S
Detailed specifications on request.

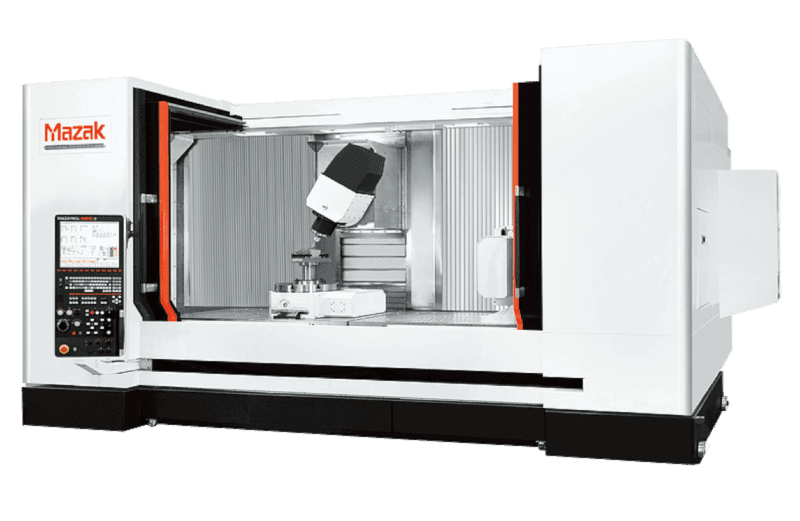

M-06Milling5-AX 5-axis milling machines

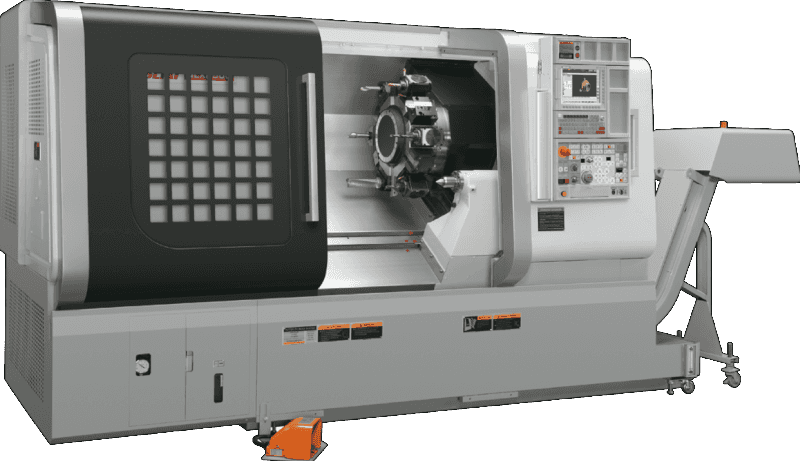

X travel 3,000 mm Y travel 800 mm Z travel 720 mm B axis ±110° C axis 0–360° A axis 0–360° Spindle speed 18,000 min⁻¹ Workpiece weight 4,000 kg Z 720 mm M-07Turning Mori Seiki turning centres with Y axis and 1.5 m bar feeder

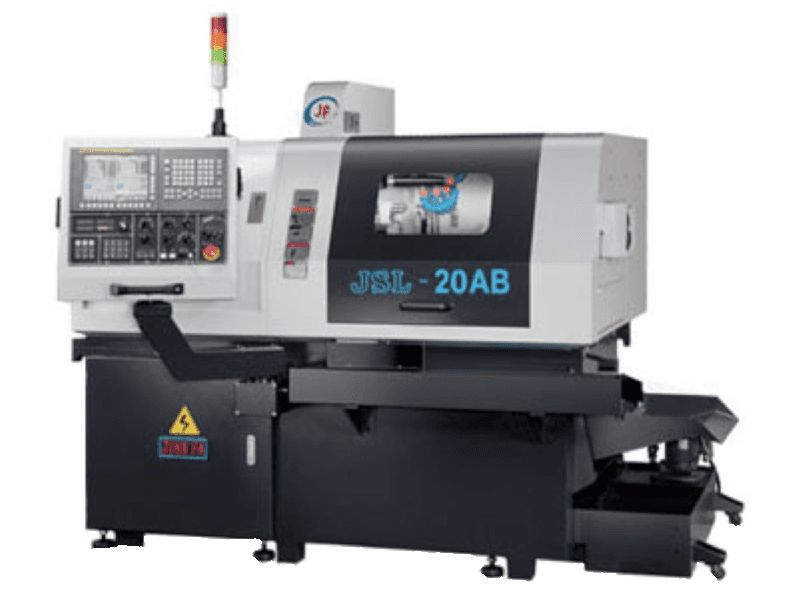

Diameter 366 mm Length 705 mm Spindle speed 4,000 min⁻¹ Spindle bore 80 mm M-08Turning Swiss-type sliding-head lathes with Y axis and 3 m bar feeder

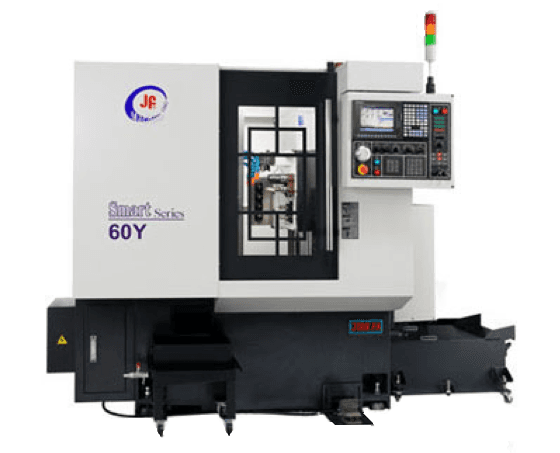

Diameter 42 mm Length 125/200 mm Spindle speed 6,000 min⁻¹ Spindle bore 42 mm M-09Turning CNC lathes with Y axis and 1.5 m bar feeder

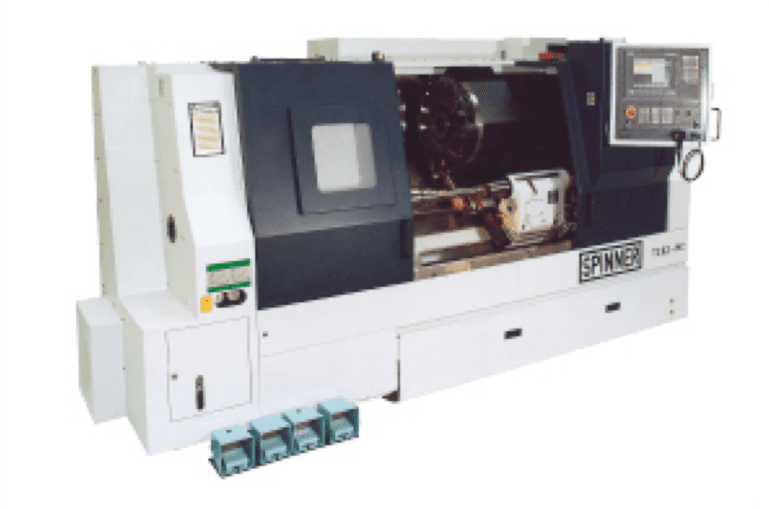

Diameter 60 mm Length 130 mm Spindle speed 3,500 min⁻¹ Spindle bore 52 mm M-10Turning Turning machine

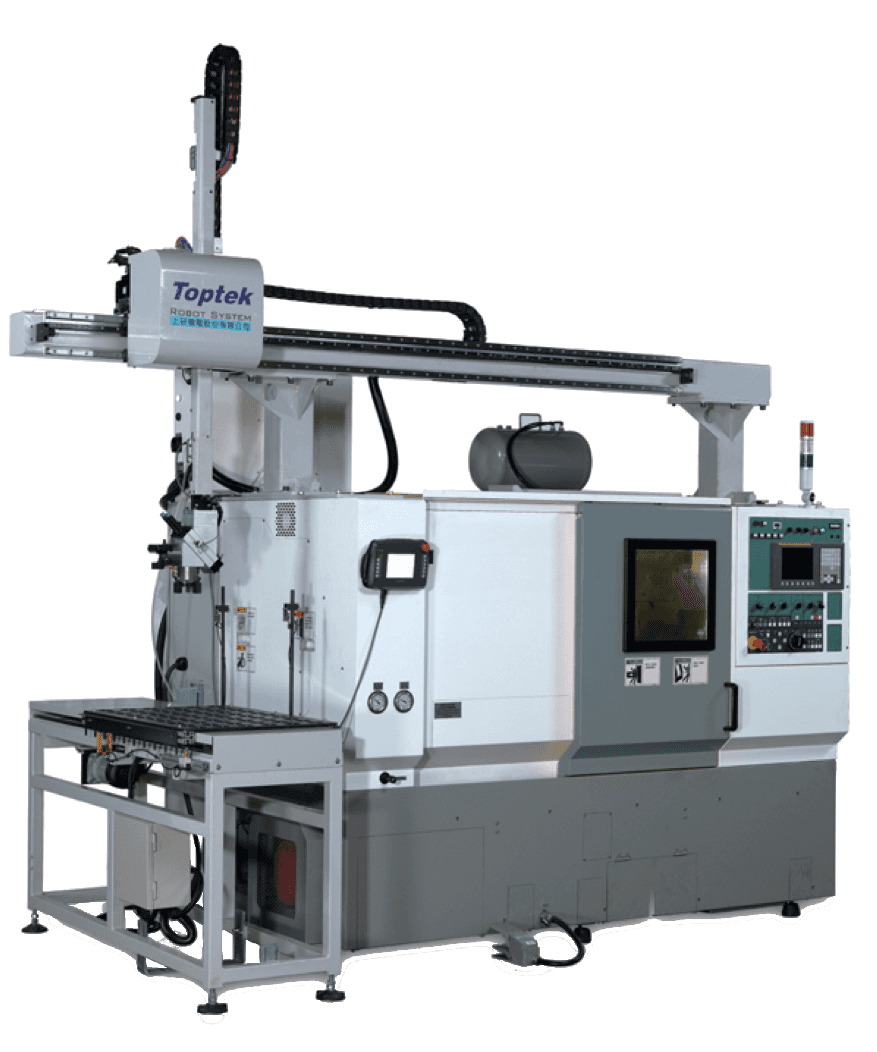

Diameter 400 mm Length 1,090 mm Spindle speed 10,000 min⁻¹ Spindle bore 90 mm M-11Turning Robot-loaded turning machines

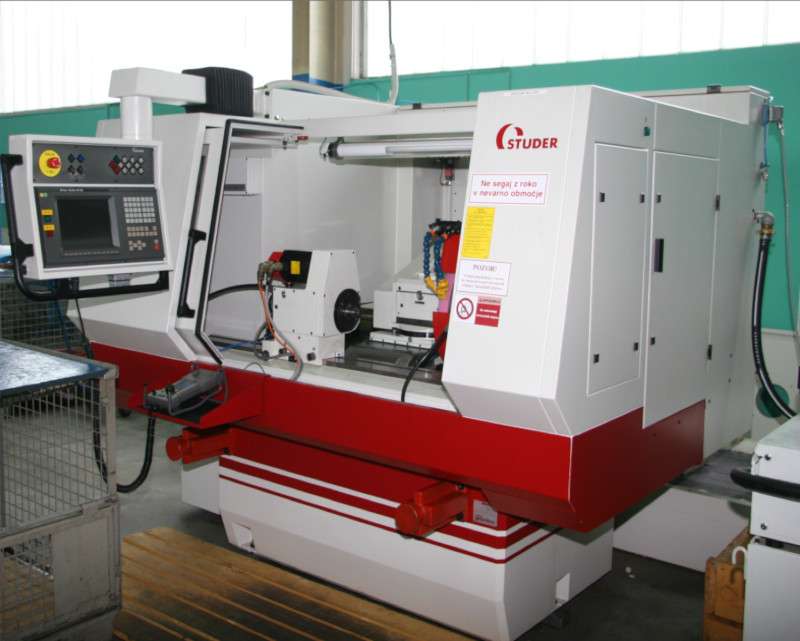

Diameter 360 mm Length 640 mm Spindle speed 4,900 min⁻¹ Spindle bore 75 mm M-12Grinding CNC, surface and centreless grinding

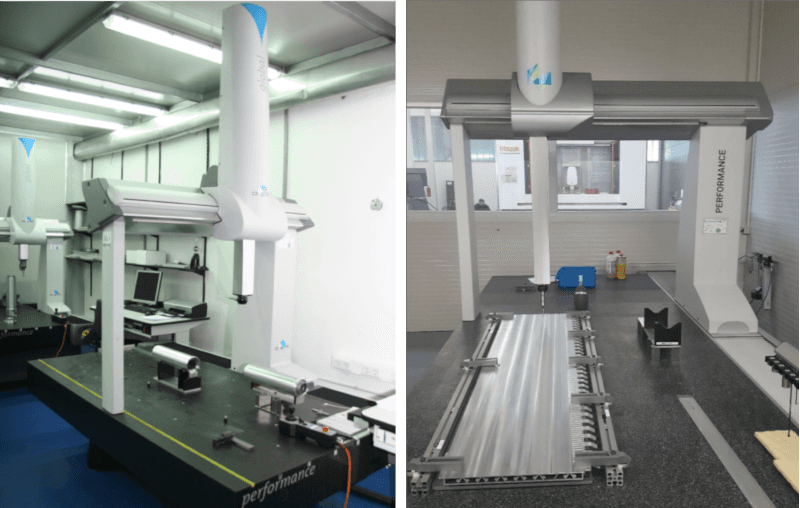

Diameter 230 mm Length 515 mm Workpiece weight 120 kg Repeatability 0.00025 mm Positioning accuracy 0.0025 mm / 500 mm M-13Measuring & testing CNC coordinate measuring machines DEA Performance

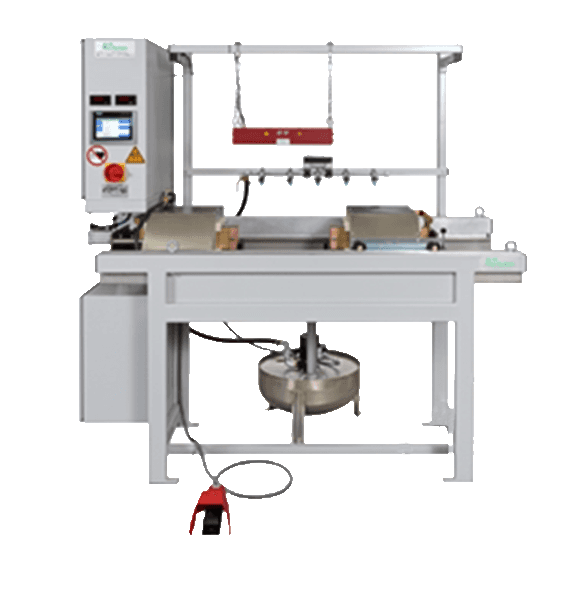

X travel 1,000 mm Y travel 3,000 mm Z travel 1,000 mm Method scanning / touch Accuracy 2 + 3L/1000 µm Z 1,000 mm M-14Measuring & testing Crack detection unit ACY 700

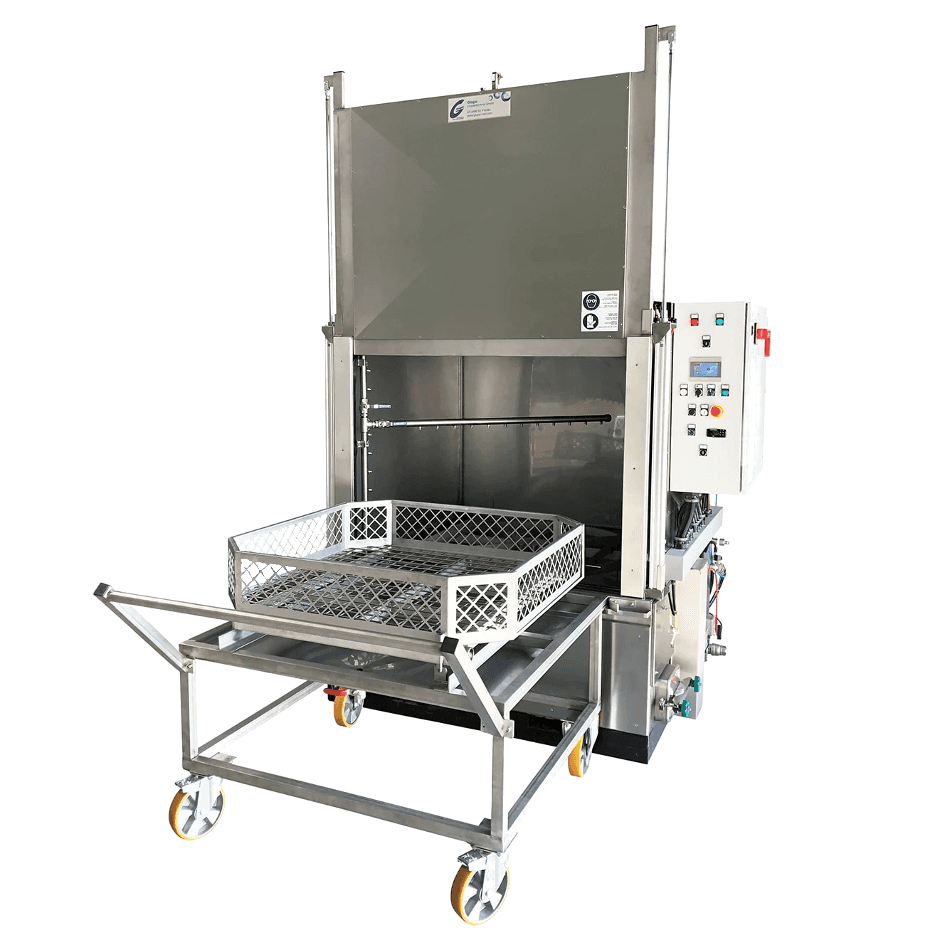

Standard DIN EN ISO 9934, VDE Clamping length 700 mm Test bench (W × D × H) 600 × 1,800 × 400 mm M-15Measuring & testing Glogar cleaning system L160
Detailed specifications on request.
No machine group matches these filters.
/ 15 machine groups shown
